EQUIPMENT FOR QUALITY CONTROL AND R&D

QAQC LAB VISCOUS SAMPLER

REUSABLE SAMPLER FOR CREAM PASTES AND GELS Suitability:       Medium viscosity

ONLINE PRICING

STORE SEARCH

COMPLETE INTERACTIVE SAMPLER CATALOGUE PDF DOWNLOAD

BROCHURE QUICK QUOTE ​ALSO SEE   DISPOSABLE VISCOUS SAMPLERS

Reusable Sampler for creams, pastes & gels, Ideal for sampling creams, shampoos, soaps, honey and other semi viscous materials. After sampling the sampler can be completely dismantled into its component parts for quick and thorough cleaning.

Ideal for sampling creams, shampoos, soaps, honey and other semi viscous materials. After sampling the sampler can be completely dismantled into its component parts for quick and thorough cleaning. QAQC LAB VISCOUS SAMPLER 675 7000 STAINLESS STEEL PP PTFE Material:  Food grade PTFE, Polypropylene (PP) or 316 Stainless Steel  STURDY, EASY GRIP T-BAR HANDLE CLEANING RING SCRAPES EXCESS PRODUCT FROM SAMPLER.CAN ALSO BE USED AS A DEPTH GAUGE

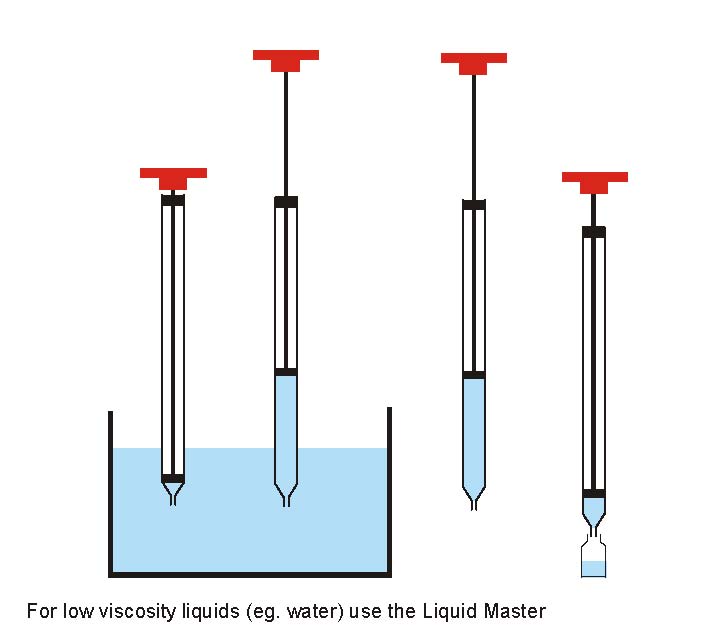

OPERATION

1. Insert the sampler into the product.

2. At the required depth pull handle to suck product into the sampler.

3. Remove the sampler from the product. Run the cleaning ring down the        sampler to remove any product that adheres to the side of the sampler

4. Push down the handle to remove the sample SPECIFICATIONS PART                   LENGTH          MATERIAL          CAPACITY   675 7000S600               600 mm         316 stainless steel     160 ml

675 7000S1000             1000 mm         316 stainless steel     300 ml

675 7000S1500              1500 mm         316 stainless steel    450 ml

675 7000P600                600 mm         PP                 160 ml

675 7000P1000              1000 mm         PP                 300 ml

675 7000P2000              2000 mm         PP                 650 ml

675 7000T600                600 mm         PTFE               160 ml

675 7000T1000              1000 mm        PTFE               300 ml

675 7000T2000               2000 mm        PTFE               650 ml
