EQUIPMENT FOR QUALITY CONTROL AND R&D INLINE POWDER SAMPLER MANUAL OPERATION
"The general consensus is that only sampling from a bulk powder while it is in motion can yield the desired representative sample." STORE SEARCH
COMPLETE INTERACTIVE SAMPLER CATALOGUE PDF DOWNLOAD
Contact Us
We will get back to you as soon as possible
Please try again later
HIGH CONTAINMENT OPTION Split Butterfly Valve DiscLock™
ChargePoint containment split butterfly valve with patented DiscLock™ feature offers the highest levels of dust particulate control when transferring large volumes of bulk powder materials.
The ChargePoint® DiscLock™ powder transfer system ensures operator safety and a reduced risk of cross contamination while handling non-sterile chemical, pharmaceutical API and formulation ingredients with validated levels of containment performance.
INLINE POWDER SAMPLER MANUAL OPERATION PIPE DIAMETER 100mm to 300mm 675 FG (xxx m/a) CHOOSING THE RIGHT SIZE
INSTALLING THE FRONT BOSS NON VERTICAL INSTALL
MATERIALS OF CONSTRUCTION
Contact parts: - 316 stainless steel - PTFE - Silicone rubber, Viton or EPDM - Other materials on request
Non contact parts: - 304 grade stainless steel - Other materials as required. The manual inline sampler is specially designed and engineered so that powder is kept out of the bearings by a special flexible membrane - this means the sampler will not jam
The sample is collected in a cup and so is not physically altered by the sampling process
When the sampling cup is retracted the full bore of the downpipe is available for powder flow
The manual inline sampler is made from FDA acceptable materials and is easy to strip down for cleaning
OPERATION
Resting When the FreeGlide® is not in use the full bore of the downpipe is available for powder flow.
Sampling The sampling cup is extended into the downpipe to catch the product as it falls.
Discharging The sampling cup is then retracted and inverted. The powder sample falls down the discharge chute to where it is collected DOWNLOADS BROCHURE FREEGLIDE INLINE POWDER SAMPLER SELECTION OF BLANKING PLATE

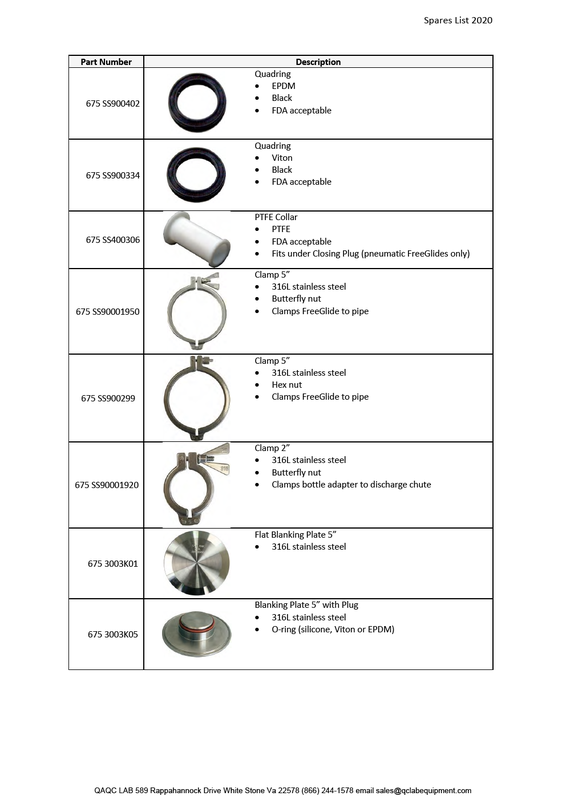

The blanking plate is a 316 SS Plate that fits in to the front boss, while the sampler is being serviced. Two styles are available
MANUAL FREEGLIDE COMPONENTS
675 FG1000M 100 mm DIAMETER PIPE MANUAL SAMPLER
675 FG1500M 150 mm DIAMETER PIPE MANUAL SAMPLER
675 FG2000M 200 mm DIAMETER PIPE MANUAL SAMPLER
675 FG3000M 300 mm DIAMETER PIPE MANUAL SAMPLER
