 PARTICLE CHARACTERIZATION SYSTEMS

SAMPLE SPECIFIC DISPERSION AND OPTICS SYSTEMS FOR PRECISE PARTICLE ANALYSIS HIGH THROUGHPUT DYNAMIC ANALYSIS / LOW THROUGHPUT DYNAMIC AND STATIC ANALYSIS

COMPLETE INTERACTIVE SAMPLER CATALOGUE PDF DOWNLOAD

ADVANCED DIGITAL IMAGING TECHNOLOGY NEW ARMADILLO 3D INTUITIVE SOFTWARE

Callisto 3D is software created and developed by the engineers at Occhio. Used in conjunction with any Occhio instrument, this software receives and deciphers the vast amounts of digital information which is supplied during microscopy analyses.

Certified to conform with ISO 9276-6 Norms, this software uses powerful algorithms to interpret, characterize, and sort each particle independently. With over 60 evaluation tools, Callisto 3D allows the user to thoroughly review analysis results for thousands of different applications.

STATUS GAUGES

FULL REPORT CAPABILITIES

FULL VIDEO & IMAGE RECORDING CAPABILITIES

NAVIGATION WHEEL

DIGITAL IMAGING TECHNOLOGY CAN BE ESPECIALLY USEFUL FOR PARTICLE SIZE DISTRIBUTION TESTS, IN CASES WHERE THE PARTICLES ARE TOO SMALL FOR ANALYSIS BY LASER DIFFRACTION, OR WHERE THE ANALYSIS OF PARTICLE SHAPE PARAMETERS IS IMPORTANT.

THE REALTIME CAPABILITIES OF OCCHIOS' PARTICLE CHARACTERISTIC ANALYZERS, ALONG WITH THE ABILITY TO DETECT SHAPE PARAMETERS, AND MAKE DISTINCTIONS BETWEEN LIGHT AND DARK, ALLOW FOR THE ADVANCED ANALYSIS OF PARTICLES IN BOTH LIQUID AND SOLID FORMS.

RECENT INNOVATIONS INCLUDE THE ABILITY TO MEASURE TRANSPARENT CRYSTALS IN CRYSTALLIZATION STUDIES,  DYNAMIC PROTEIN AGGREGATE ANALYSIS AND ABSOLUTE PARTICLE COUNTING OF PROTEIN AGGREGATES. .

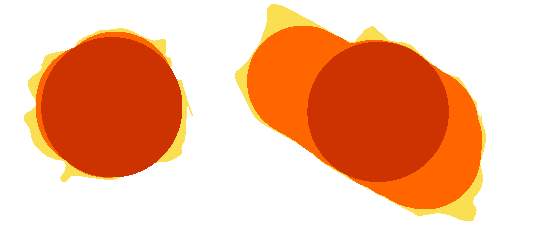

BY OVERLAYING VIRTUAL CIRCLES ON TO PARTICLE IMAGES, QUANTIFIABLE ABRASION PROPERTIES LIKE BLUNTNESS AND ROUGHNESS ARE NOW POSSIBLE. KINETIC MEASUREMENTS OF SLURRIES, AND  LENGTH / WIDTH ANALYSIS OF FIBROUS MATERIALS , ARE ALSO POSSIBLE. NEAR PERFECT SIEVE CORRELATION IS ATTAINED BY USING THE MAXIMUM INSCRIBED DISC, TO DETERMINE THE WIDEST PART OF A PARTICLE, WHICH WOULD DETERMINE THE APERTURE SIZE A PARTICLE WOULD FALL THROUGH.

POWDERS AND GRANULARS Zephyr  SERIES LOW TO HIGH THROUGHPUT POWDER ANALYZERS ZEPHYR ESR                                 NEW !   ZEPHYR ESR 2                           ZEPHYR LDA

GRANULARS / BULK MATERIALS                    GRANULARS / BULK MATERIALS                  DIFFICULT POWDERS BY OVERLAYING VIRTUAL DISCS ON TO IMAGES OF ABRASIVE PARTICLES, ABRASIVE PROPERTIES LIKE BLUNTNESS  AND ROUGHNESS, CAN BE STUDIED. THREE DIFFERENT MODELS  DESIGNED TO HANDLE LARGER SAMPLE QUANTITIES OF POWDERS AND GRANULARS, AND/ OR INLINE ANALYSIS. LIQUID ANALYSIS OPTIONS AVAILABLE  MORE INFORMATION ANALYSIS PARAMETERS DRY 30 micron to 30 mm

DRY-VIBRATING HOPPER / GRAVITY   VACUUM ASSIST   ANALYSIS PARAMETERS DRY 30 micron to 30 mm

DRY-VIBRATING HOPPER / GRAVITY   VACUUM ASSIST   ANALYSIS PARAMETERS DRY 7 micron to 30 mm WET 1 micron to 1 mm

DRY-VIBRATING HOPPER / AIR JET / VACUUM ASSIST , LATERAL DISPERSION

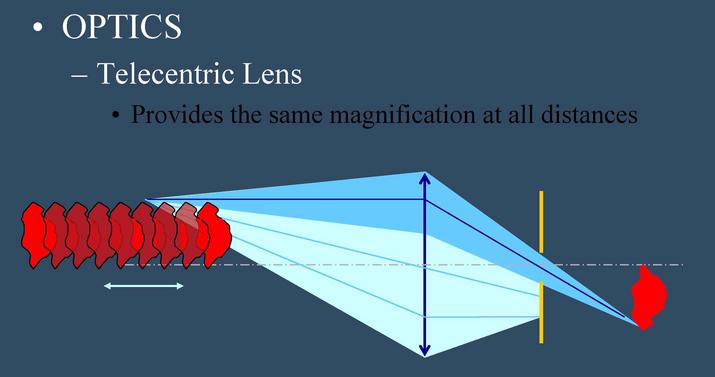

LIQUID- FLOWCELL  A TELECENTRIC LENS PROVIDES THE SAME MAGNIFICATION LEVEL AT ALL DISTANCES, SO THAT PARTICLES AT DIFFERENT DEPTHS IN THE FIELD OF VIEW ARE RECORDED ACCURATELY. UNIQUE OPTICS ALLOW FOR DETECTION TO 200 nm.

THE BLUE MONOCHROMATIC LIGHT PROVIDES PARTICLE DEFINITIONS BELOW 1 MICRON, WHICH CANNOT BE ACCOMPLISHED WITH THE STANDARD WHITE LIGHT USED BY OTHER DIGITAL IMAGERS

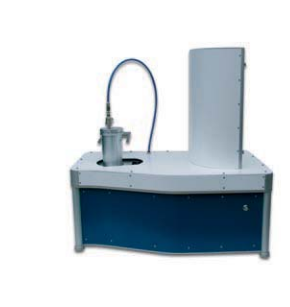

FINE POWDERS Nano 500  SERIES  FINE POWDER ANALYZERS  (PATENTED VACUUM DISPERSION SYSTEM) 500 NANO                            500 NANOP                           500 NANOXY THREE DIFFERENT MODELS FOR LOW VOLUME PRECISION STATIC POWDER ANALYSIS

A MONOCHROMATIC, COLLIMATED BACK LIGHT, ACTS LIKE A CALIPER, PROVIDING PRECISE PARTICLE DEFINITION   FULLY AUTOMATED FOR PHARMACEUTICAL  APPLICATIONS  CAN TEST BELOW 1 mg.

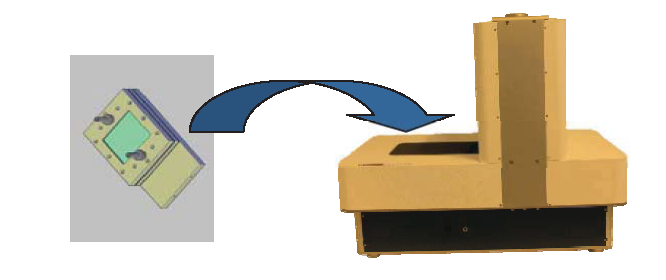

CALLISTO PHARMA SOFTWARE  IS 21 CFR PART 11 COMPLIANT USING THE MAXIMUM INSCRIBED VIRTUAL DISC OVERLAY, NEAR PERFECT SIEVE CORRELATION MAY BE ATTAINED. (VARIANCES ARE CAUSED BY SIEVE APERTURE DIAGONALS, WHICH GIVE A FALSE READING) NEW! NANO 500 XY  WITH REMOVEABLE FLOWCELL FOR LIQUIDS SAMPLE TYPE: VERY FINE POWDERS 400  nm to 2 mm / 3 mm XY WET 400 nm micron to 1 mm (XY ONLY) Powders, granulars, and liquids, can now be analyzed with extreme precision, using a number of innovative sample dispersion techniques. For less dense powders, vacuum dispersion, either by itself, or in conjunction with a vibrating platform, and / or air jet, are utilized to move the particles in to the field of view. Liquids and slurries, are kept in suspension using magnetic stirrers, while specially designed pumps, draw precise amounts through specially engineered parallel glass slides (flowcell).

Our particle measurement systems have superior resolution, compared to laser diffraction, allowing for precise analysis of particles as small as 200 nanometers, which makes this technology not only suitable, but preferable for exacting applications. LIQUIDS  Flow Cell   SERIES  FOR PARTICLE CHARACTERIZATION IN LIQUIDS AND SLURRIES

UNIQUE FLOWCELL WITH INTERCHANGEABLE VARIABLE WIDTH SPACERS FROM 50 MICRON TO 1 MM. ALLOWS FOR THE ANALYSIS OF EMULSIONS, AND FOAM WITH LITTLE OR NO DILUTION.

ENTER SAMPLE WITH STANDARD PIPETTE OR BY TUBES

SPECIAL SYRING PUMP ALLOWS SAMPLES AS SMALL AS 1 MICRO LITER TO BE ANALYZED. RINSE MODE CLEANS CELL FOR NEXT TEST

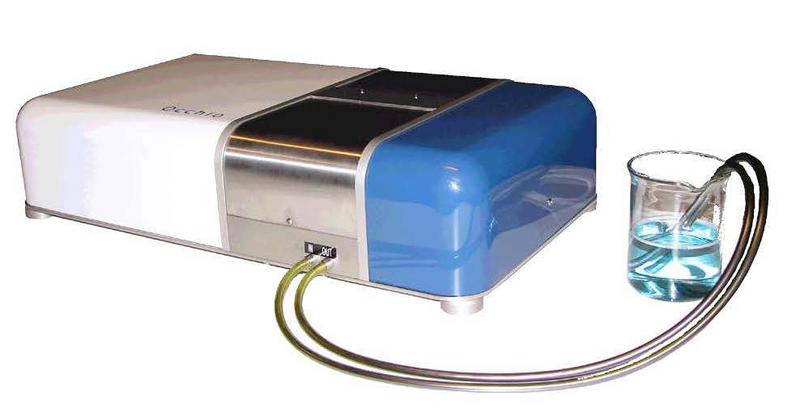

FC200M                                         FC200S                                    FC200S IPAC

SYRINGE PUMP MAGNETIC STIRRER KEEPS PARTICLES IN SUSPENSION

MEMBRANE PUMP NEW FOR BIOTECH SAMPLE TYPE: PARTICLES SUSPENDED IN LIQUID, AND SENSITIVE TO BREAKAGE      ANALYSIS DETECTION 800 nm to 1 mm SAMPLE TYPE: PARTICLES SUSPENDED IN LIQUID FOR SMALLER PARTICLES ANALYSIS DETECTION 200 nm to 1 mm SAMPLE TYPE: PARTICLES SUSPENDED IN LIQUID FOR SMALLER PARTICLES WET 200 nm to 1 mm

ADAPTED FOR PROTEIN AGGREGATE COUNTING AND ANALYSIS THREE DIFFERENT MODELS  DESIGNED FOR LIQUID ANALYSIS Occhio Scan

DIGITAL IMAGING FOR PARTICLE CHARACTERIZATION HOW TO AUTOMATICALLY MEASURE LENGTH, WIDTH, AND SIZE DISTRIBUTION, ALONG WITH MANY APPLICATION BASED MORPHOLOGICAL PARAMETERS AVAILABLE SIZE AND SHAPE PARAMETERS

SAMPLE TYPE: SOLID MATERIALS / TEXTURE AND HOLE   CHARACTERISTIC ANALYSIS

DRY 2 microns to 20 cm

SAMPLE TRANSPORT METHOD: MANUAL PLACEMENT
