EQUIPMENT FOR QUALITY CONTROL AND R&D  CORE SAMPLERS FOR ICE , WAX , AND ICE CREAM

ONLINE PRICING

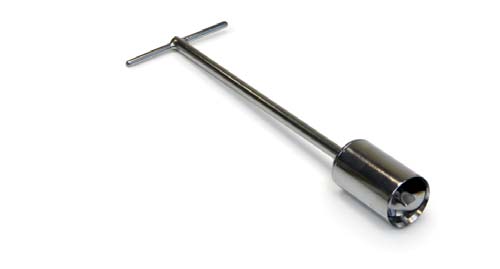

STANDARD CORE SAMPLER

STORE SEARCH BROCHURE

COMPLETE INTERACTIVE SAMPLER CATALOGUE PDF DOWNLOAD

QUICK QUOTE • Suitable for sampling ice, wax and other similar materials • Single point sampler • Made from 316 stainless steel

Operation:

1. Rotate the handle as the sampler is pushed into the product.    The scroll will cut into the product and the sample will be   deposited in the sample collecting chamber.

2. Removing the cylinder allows the sample to be accessed. STANDARD CORE SAMPLER Part No.            Length       Sample Volume      Diameter of Sampling head

675 6000A300      300 mm          50 ml                       40 mm

675 6000A550      550 mm          50 ml                       40 mm

675 6000A1050   1050 mm         50 ml                       40 mm

POWER ICE SAMPLER Manufactured from chemically resistant 316 stainless steel.

• Fits all standard electric drills  (drill not supplied) • Takes samples in seconds • Wide diameter for large cross sectional sample • Available from stock • Supplied with ejection rod

POWER ICE SAMPLER Part No.             Description                                Length       Diameter       Material

675 6010A240   Powered Ice sampler with discharge rod     240 mm     50 mm       316 Stainless Steel ICE BORER

• Suitable for sampling ice, wax and other similar materials • Single point sampler • Made from 316 stainless steel

Operation:

1. Rotate the handle as the sampler is pushed into the product.    The scroll will cut into the product and the sample will be    deposited in the sample collecting chamber.

2. Removing the cylinder allows the sample to be accessed.

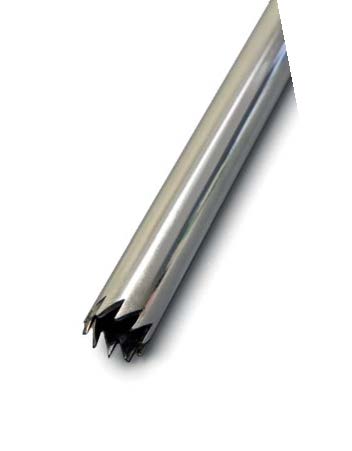

• Suitable for ice, wax and other similar materials • Made from 316 stainless steel

ICE BORER Part No.          Description                       Length         OD

675 6005A500    Ice Borer                          500 mm                25 mm

675 6005A1000  Ice Borer                1000 mm             25 mm

675 8570A700    Sample Discharge Rod     700 mm         18 mm

675 8570A1100   Sample Discharge Rod    1100 mm           18 mm The Ice Cream Sampler is ideal for sampling products like ice cream and soft waxes. All stainless steel construction and is designed to be easily dismantled for cleaning.

ICE CREAM SAMPLER Part No.        Diameter   Sample Volume    Material

675 6006A100         25 mm            30 ml            316 stainless steel with clear polystyrene test tube

675 6006A101      Test Tube made from clear polystyrene (PS)

675 8020J600      Cleaning Brush

The Ice Cream Sampler has an all stainless steel construction and is designed to be easily dismantled for cleaning. The sampler comes complete with a test tube for putting the sample into.
