ROTRONIC USB WATER ACTIVITY METER

ONLINE PRICING

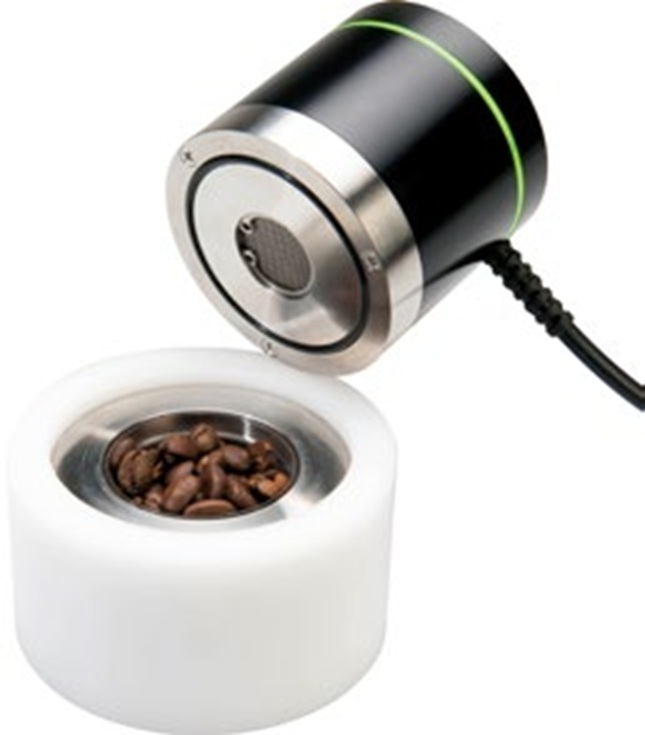

• This is the HC2A-AW probe that connects directly into your computer via USB interphase • Includes HC2A-AW probe with USB , sample holder, (200) disposable sample cups, humidity standards.  • Water activity measurement within (5) minutes with the AWQ function.

STORE SEARCH

BROCHURE QUICK QUOTE

COMPLETE INTERACTIVE SAMPLER CATALOGUE PDF DOWNLOAD

OPERATING INSTRUCTIONS

Sensor HYGROMER WA-1 • High accuracy and repeatability (up to ±0.008 aw) • Excellent Long-term stability (<1 %rh per year with clean air)

Compability • The HC2A-AW works best with the HygroLab benchtop laboratory instrument • The HC2A-AW-USB works best in combination with a Windows PC and the   HygroSoft software

Smart Electronic • Based on the Rotronic’s AirChip3000 • Uses less power and therefore has much less self-heating which improves the      overall accuracy • Saves adjustment data so that probes can be interchanged without re-adjusting

Stable housing • Use of robust materials such as aluminum and stainless steel • Has LED light ring and a touch button for ON/OFF

Sensor HYGROMER WA-1 Accuracy @ 23 ±5 °C ± 0.008 aw / 0.8 %rh / ±0.1 K Operating conditions -40...85 °C Storage conditions -40...+85 °C / 0...100 %rh, non condensing Supply voltage 3.3...5 V Status light Yes, only green light Long-term stability < 1 %rh / year (normal conditions) AW Quick Mode depending on the connected instrument Display No Button Touch button Connector HC2A-AW: HC2 connector HC2A-AW-USB: USB-A connector Cable length HC2A-AW: 1m HC2A-AW-USB: 3m HygroSoft compatibility HC2A-AW: Yes (with the AC3001) HC2A-AW-USB: Yes HygroLab compatibility HC2A-AW: Yes HC2A-AW-USB: No Dimensions Ø68 x 65 mm Housing material Aluminum, stainless steel & PC Weight 540 g CE conform CE 2014/30/EU IP protection rating IP65
