EQUIPMENT FOR QUALITY CONTROL AND R&D

QAQC LAB HEAVY DUTY MULTILEVELSLOT SAMPLERS

ONLINE PRICING

The Slot Sampler is ideal for taking a large volume, cross sectional sample from a container. The sampler has a robust all stainless steel construction and is suitable for sampling free flowing powders, granules and even slightly cohesive powders.

STORE SEARCH

COMPLETE INTERACTIVE SAMPLER CATALOGUE PDF DOWNLOAD

BROCHURE  QUICK QUOTE

JUMBO SIZE AVAILABLE IN 316 STAINLESS STEEL OR ALUMINUM

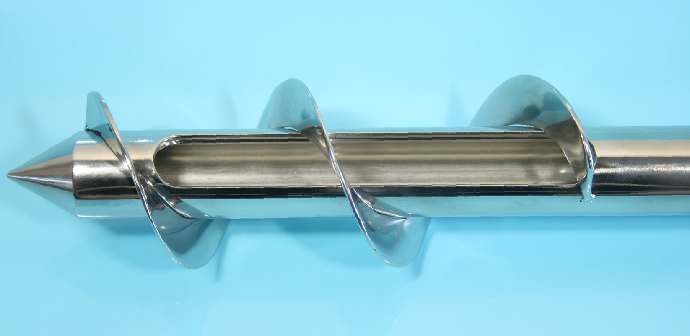

AVAILABLE WITH CUTTING SCROLL FOR COMPACTED POWDERS AVAILABLE WITH BLADES FOR COHESIVE POWDERS Type:      Cross section (composite sample) Material:   316 stainless steel, bright finish General:   Suitable for taking large volume samples.

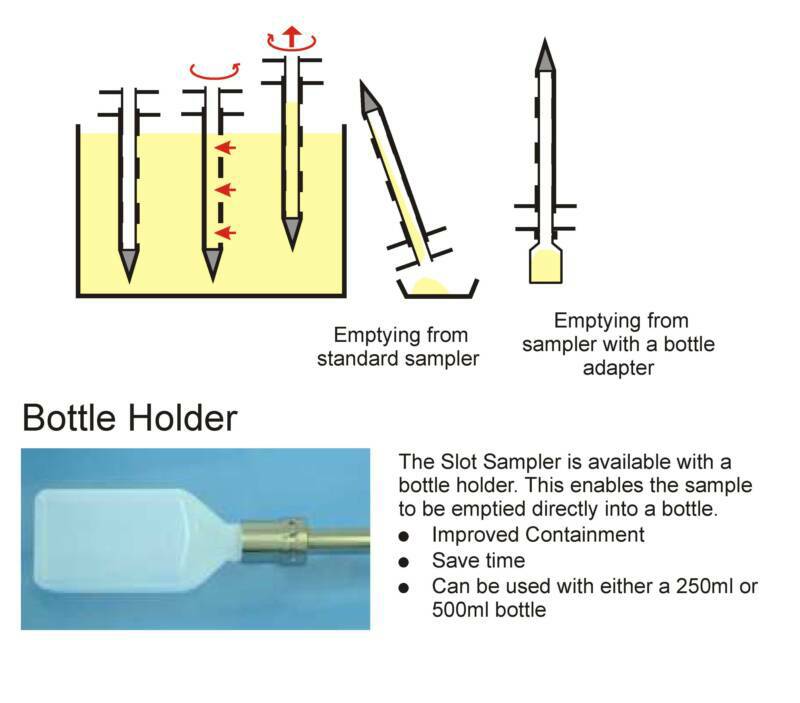

OPERATION:

1. Insert the sampler into the product 2. Turn the handle to open the slot - the product can    now be collected in the central tube 3. Turn the handle to close the slot 4. Remove the sampler 5. Invert the sampler to discharge the sample.

DISPOSABLE SLOT SAMPLERS 900 mm  600 mm  Now  disposable slot samplers  available! 100 ml or 170 ml sample volume CUTTING SCROLL MODEL FOR COMPACTED POWDERS 675 1216A

SPECIFICATIONS

SLOT SAMPLER B  DENOTES BOTTLE HOLDER (NOT AVAILABLE ON JUMBO) REF#

675 1210A300

675 1210A600

675 1210A1000

675 1210A1500

675 1210A2000

675 1210 B 600

675 1210B1000

675 1210 B 1500

675 1210K1000

675 1210K1500

675 1210K2000

WITH CUTTING SCROLL

675 1216A 600

675 1216A 1000

675 1216A 1500

LENGTH      DIAM

300  mm       25 mm

600  mm       25 mm

1000 mm      25 mm

1500 mm      25 mm

2000 mm      25 mm

600  mm      25 mm

1000 mm      25 mm

1500 mm      25 mm

900 mm       40 mm

1500 mm      40 mm

2000 mm       40 mm

600 mm        25 mm

1000 mm      25 mm

1500 mm      25 mm SLOTS

3

3

4

5

5

3

4

5

3

5

7

3

4

5 VOLUME

45   ml

110  ml

190  ml

300  ml

370  ml

110  ml

190  ml

300  ml

750  ml

1000 ml

1300 ml

110  ml

190  ml

300  ml COHESIVE SLOT SAMPLER 316 STAINLESS STEEL SLOTS

3

3

5   REF #

675 2210A600

675 2210A1000

675 2210A1500  LENGTH

600 mm

1000 mm

1500 mm  DIAMETER

25 mm

25 mm

25 mm VOLUME

110 ml

190 ml

300 ml
