EQUIPMENT FOR QUALITY CONTROL AND R&D NEXT DAY DELIVERY AVAILABLE ON MANY ITEMS! CUSTOM ORDERS AVAILABLE! U-D Sleeve Sampler

ONLINE PRICING

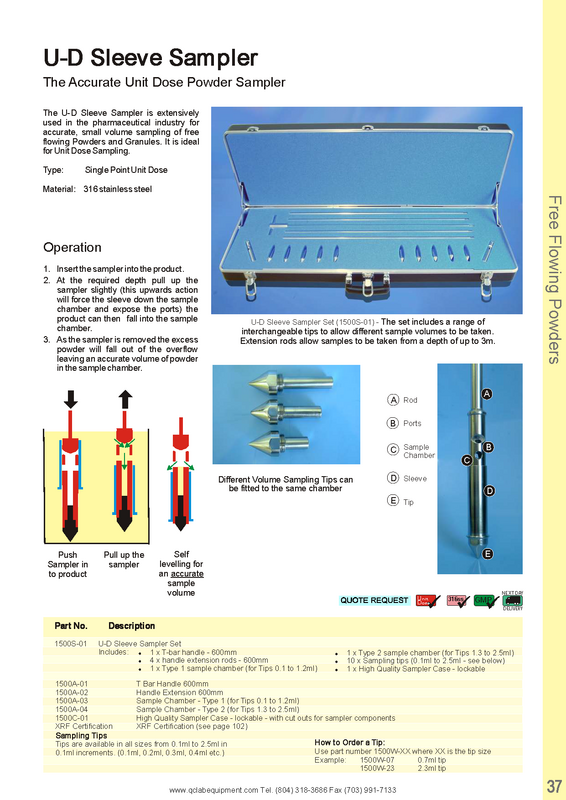

The U-D Sleeve Sampler is extensively used in the pharmaceutical industry for accurate, small volume sampling of free flowing powders and granules.

STORE SEARCH BROCHURE

MANUFACTURING DISTRIBUTION TECHNICAL SERVICES ​FOR ANALYTICAL INSTRUMENTATION

TELEPHONE (804) 318-3686 TOLL FREE  (866) 244-1578

QUICK QUOTE

It is ideal for Unit Dose Sampling.

• Single Point Unit Dose Sampler • 316 stainless steel • Use extension rods to increase the length of the sampler

High Quality Sampler Case - lockable - with cut outs for sampler components

U-D Sleeve Sampler Set (1500S-01) - The set includes a range of 10 interchangeable tips to allow different sample volumes to be taken. Extension rods allow samples to be taken from a depth of up to 3 m.

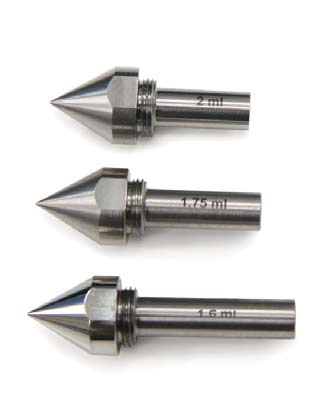

Tips are available in all sizes from 0.1ml to 2.5 ml in 0.1 ml  increments.  (0.1 ml, 0.2 ml, 0.3 ml, 0.4 ml etc.)

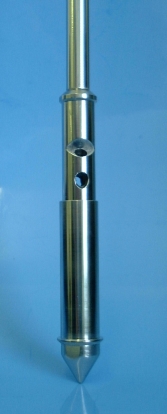

Operation

1. Insert the sampler into the product.

2. At the required depth pull up the sampler   slightly (this upwards action will force the   sleeve down the sample chamber and expose   the ports) the product can then fall into the sample chamber.

3. As the sampler is removed the excess powder   will fall out of the overfl ow leaving an accurate   volume of powder in the sample chamber. SPECIFICATIONS UD SLEEVE SAMPLER SET 675 1500S01 Includes:  1 x T-bar handle - 600mm          4 x handle extension rods - 600mm          1 x Type 1 sample chamber (for Tips 0.1 to 1.2ml)                1 x Type 2 sample chamber (for Tips 1.3 to 2.5ml)          10 x Sampling tips (0.1ml to 2.5ml - see below)          1 x High Quality Sampler Case - lockable
