EQUIPMENT FOR QUALITY CONTROL AND R&D  UNIT DOSE SAMPLETHIEF

The Unit Dose Sample Thief is a highly versatile sampler for taking multiple samples at multiple heights within the product.

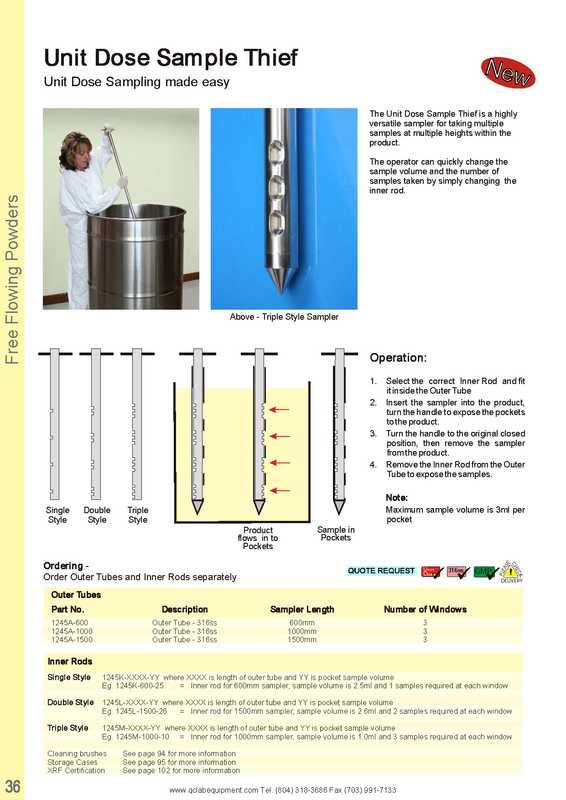

STORE SEARCH BROCHURE UNIT DOSE SAMPLE THIEF

COMPLETE INTERACTIVE SAMPLER CATALOGUE PDF DOWNLOAD

The Unit Dose Sample Thief is a highly versatile sampler for taking multiple samples at multiple heights within the product.

The operator can quickly change the sample volume and the number of samples taken by simply changing the inner rod.

• Multilevel Unit Dose Sampling • Take one, two or three samples at each sampling height • 316 stainless steel TRIPLE STYLE SHOWN

1. Select the correct Inner Rod and fit    it inside the Outer Tube

2. Insert the sampler into the product,    turn the handle to expose the pockets    to the product.

3. Turn the handle to the original closed    position, then remove the sampler    from the product.

4. Remove the Inner Rod from the Outer   Tube to expose the samples.

Note: Maximum sample volume is 3ml  per pocket. NOTE: Outer tubes, and inner rods are ordered seperately Outer Tubes Part No.         Description        Length      Number of Windows

675 1245A600     Outer Tube - 316ss   600 mm           3 675 1245A1000  Outer Tube - 316ss  1000 mm          3 675 1245A1500  Outer Tube - 316ss  1500 mm          3 Inner Rods

Single Style 675 1245K-XXXX-YY where XXXX is length of outer tube and YY is pocket sample volume

Eg. 675 1245K-600-25 = Inner rod for 600mm sampler, sample volume is 2.5ml and 1 samples required at each window

Double Style 675 1245L-XXXX-YY where XXXX is length of outer tube and YY is pocket sample volume

Eg. 675 1245L-1500-26 = Inner rod for 1500mm sampler, sample volume is 2.6ml and 2 samples required at each window

Triple Style  675 1245M-XXXX-YY where XXXX is length of outer tube and YY is pocket sample volume Eg. 675 1245M-1000-10 = Inner rod for 1000mm sampler, sample volume is 1.0ml and 3 samples required at each window
