EQUIPMENT FOR QUALITY CONTROL AND R&D  INLINE POWDER SAMPLERS "The general consensus is that only sampling from a bulk powder while it is in motion can yield the desired representative sample."

COMPLETE INTERACTIVE SAMPLER CATALOGUE PDF DOWNLOAD

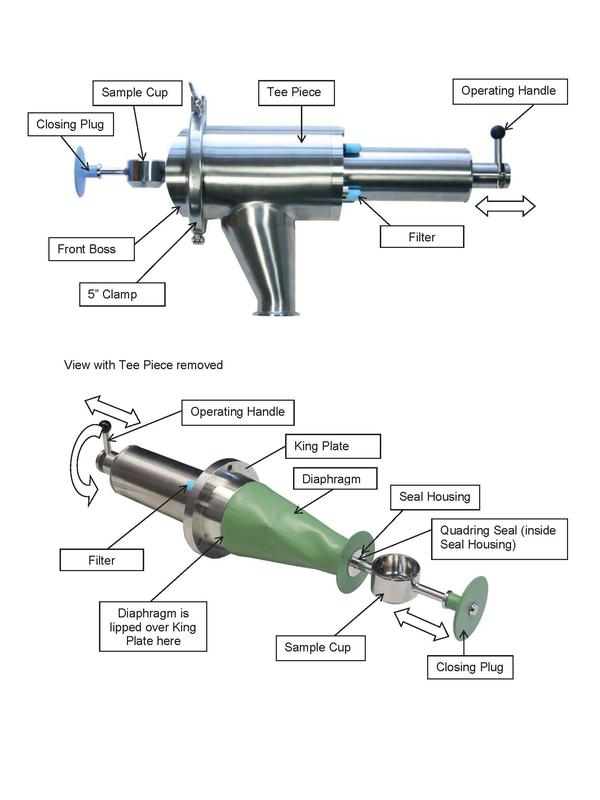

FREEGLIDE JAM PROOF SAMPLERS AUTOMATIC / PNEUMATIC OR MANUAL

The FreegIide Inline Samplers are specially designed and engineered so that powder is kept out of the bearings by a special flexible membrane. This means the sampler will not jam.

The sample is collected in a cup and so is not physically altered by the sampling process. When the sampling cup is retracted the full bore of the down pipe is available for powder flow. Made from FDA acceptable materials and easy to strip down for cleaning

SMARTGLIDE INLINE CUP SAMPLERS AUTOMATIC / PNEUMATIC OR MANUAL

The SmartGlide is specially developed for sampling dusts, powders and granulates in downpipes.

The sampler is used for freeflowing solids with particle sizes between 1 nm and 10 mm, and is characterized by its uncomplicated installation and reliable functionality.

The samples are representative and reproducible. In the pneumatic version and with appropriate control, time-, volume- or event-proportional sampling can be realized. Only suitable for free-flowing, free-flowing bulk materials with grain sizes between 1 nm and 10 mm.

AUTOMATED PNEUMATIC SAMPLER

MANUALLY OPERATED SAMPLER

SMARTGLIDE SAMPLER

The supplied TC flange DN80 or DN125 is welded into the wall of the pipe or chute according. The sampler is attached to it with a triclamp. Optionally, a sample collection system (bottle adaptor or bag holder) is connected to the outlet.

INLINE POWDER SAMPLER SamFlow For pneumatic conveylines

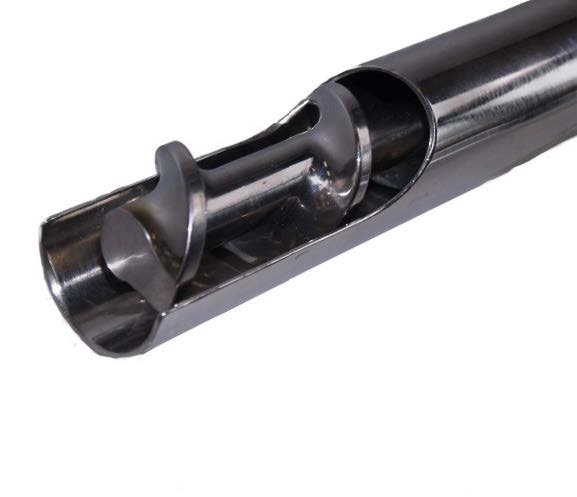

INLINE AUGER SAMPLER AUTOMATIC / PNEUMATIC OR MANUAL

Application The sampling systems enable continuous, representative and reproducible sampling of any quantities of accumulating, slipping or free-falling solids with particle sizes <10mm.

After sampling, the sample falls into any collection system, which is attached to the ejection nozzle with a 63 mm tri-clamp ferrule.

Application The SamFlow system enables the sampling of bulk materials (powder or granulates) from pneumatic conveying lines up to 3.5 bar conveying pressure.

This can be airborne or dense phase conveying.  After sampling, the sample is collected in a 2 liter sample bottle The device is typically used for pneumatic unloading of silo trucks or for internal pneumatic transfers. It is characterized by its uncomplicated installation and reliable mode of operation.

The sample quantity can be freely determined by the number of intervals. With appropriate control a time-, volume- or event-proportional sampling can be realized.
